What Are Cantilever Decks And Overhang Rules?

When it comes to types of outdoor decks, cantilever decks are one of the most unique and beautiful. They have special effects on the eyes and can make space bigger. As a result, this creative answer is chosen by many designers and homeowners.

Cantilever decks don’t use thick columns to support them as most decks do, which makes it look like the deck is floating in the air. This not only makes the best use of the room, but it also gives buildings a strong modern look.

But this plan needs exact engineering calculations and strict adherence to building codes. This piece will talk about cantilever decks and the overhang rules. It will give you a full and detailed picture of how to build a cantilever deck. You will gain a comprehensive and in-depth understanding of cantilever decks.

What are Cantilever Decks?

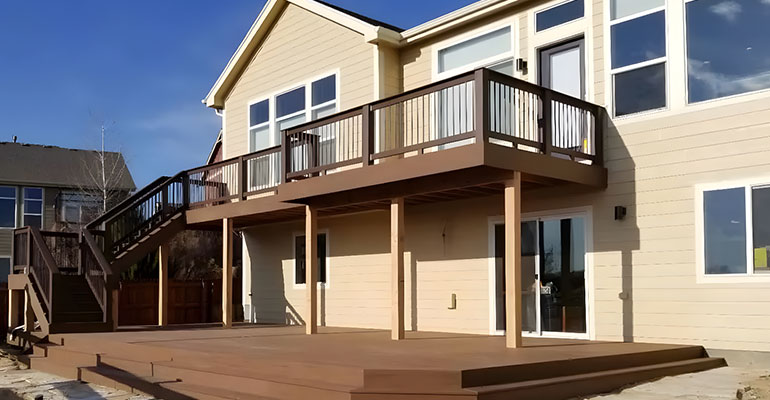

A cantilever deck, which is also called a floating deck or projecting deck, has beams that go past the place where they are supposed to be supported. This creates a cantilevered section without vertical posts for support. The design is based on classic cantilever engineering principles.

Cantilever decks are an excellent way to expand deck space. Their extended sections can serve for shade or aesthetic purposes, such as creating a covered porch or extending a house roof. The weight of the overhang makes the materials used for cantilever decks heavier than those for other types of decks.

Applications of Cantilever Decks

There are many ways to use and enjoy a cantilever deck, which makes it a great choice for outdoor areas. A lot of the time, the floating form goes well with modern and simple architecture. But I’ve seen cantilever decks fit in perfectly with rustic cabins, traditional homes, and even historic repairs where hiding the supports was important.

Here are some popular uses for a cantilever deck:

• Overhanging Balconies: A cantilever’s “floating” look makes for an open design where the supports aren’t in the way of the view.
• Decks Over Sloped or Uneven Ground: When building on uneven ground, a cantilever lets the deck spread outward without needing extra posts or footings, which makes construction easier.
• Maximizing Space Within Property Lines: Decks can’t go past property lines, but cantilevering brings usable space closer to the line while still making the main structure legal. This can be especially helpful for lots that are close together or in cities.

Solid Capped Composite Decking Board CO-03

Capped with an HDPE layer, Capped Composite Decking is made excellent at resisting stains, scratches, weathering, and fading.

View More

Advantages of Cantilever Decks

The popularity of cantilever decks is no accident. They offer multiple significant benefits:

• Aesthetic Value: The most appealing thing about cantilever decks is how they look. By getting rid of the supporting beams below, they make the view clear and unobstructed. They look very clean, modern, and beautiful, whether they are used to enjoy the view or as part of building design.
• Space Expansion: The cantilever design successfully increases the deck area that can be used without the need for extra columns or foundations in the ground. This is especially helpful for houses in cities that aren’t very big.
• Functional Versatility: Cantilever decks are often found on levels that are higher than the ground. They can add covered porches and rooftop terraces to add outdoor living space without changing how the lower floors work.
• Cost savings and Easier Construction: Cantilever decks can be used on some types of ground instead of digging and pouring extra foundations and columns. This speeds up the building process and could lower the cost of the materials.

Comparing Cantilever Decks with Other Deck Types

Thanks to these advantages, cantilever decks are an ideal choice that balances style and functionality. But how do they compare to other deck types?

• Cantilever Deck: A cantilever deck maximizes usable space within limited areas. It expands available space without requiring additional foundations. Also, a cantilever deck’s clean lines make it look like it’s floating, which is great for modern design styles.
• Attached Deck: An attached deck integrates with the house structure. The building provides robust structural support for it. Consequently, it is highly stable and permits longer spans. However, attached decks require proper waterproofing and fixed ledger boards. They also necessitate additional foundation work.
• Freestanding Decks: Freestanding decks suit areas not requiring connection to a house. This design doesn’t rely on ledger boards. It offers flexibility for placement on patios or standalone structures. However, building freestanding decks typically demands more posts and foundation work. Without adequate support, they may feel less stable.

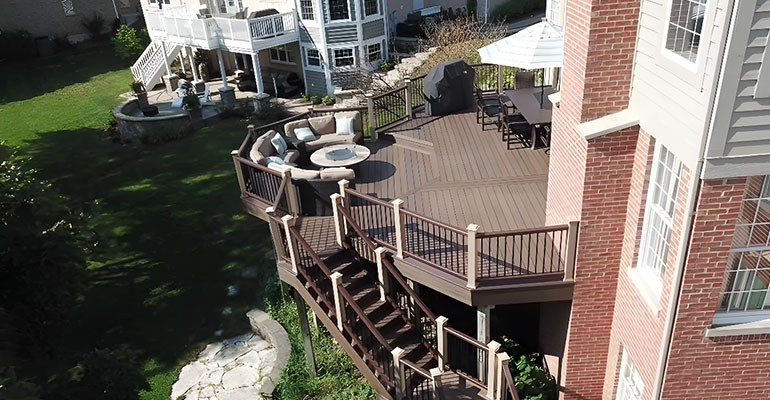

Overhang Rules

Proper planning and following the limits of the structure are important for making sure that a cantilever deck is safe and works well. The overhang puts more stress on the joists, bolts, and connection points the longer it is. This makes it more likely that the structure will sag or fail. That’s why span tables and building rules must be followed when making one.

The International Residential Code (IRC) gives general rules. But you should always check your local building codes and the manufacturer’s instructions. To begin, here are the rules:

Cantilevering Limits for Joists

A deck joist can usually lean out by one-third to one-fourth of its length. It depends on the type of boards, the size of the joists, and how far apart they are. For instance, a 2×10 joist that is 12 feet long might be able to cantilever between 3 and 4 feet. But you should always check span tables or local rules to make sure you know the exact length that is allowed.

To make sure the structure is stable, the joists must also go back into the deck at least twice as far as the cantilever. This requirement for a back span helps balance the extension and stops the beam from deflecting or lifting too much.

Beam Cantilevering Limit

Cantilever beams can also go past the posts that hold them up, but this doesn’t happen very often. The length that is allowed depends on the material of the beam, its span, and the load conditions. If the length goes beyond the support points by a large amount, it usually needs technical approval.

Strength of Materials

Different types of wood, hybrid materials, and grades of wood don’t all let you safely extend your deck the same distance. This is because they can hold different amounts of weight.

Composite decking boards might have stricter cantilever limits than wood. So, before finalizing a plan, you need to check the manufacturer’s specs and the building codes in your area. The “1/4 rule” is generally followed by wood decking, but some composite decking brands need shorter joist cantilevers because they bend more.

Strong Fastening

For a cantilever deck to work, the joists must be securely attached to the main frame of the deck. Long-term strength is guaranteed by storm ties, joist hangers with structural screws, or through-bolts, especially when there is a lot of wind or weight on the building.

Tip: To keep water out and your fasteners in, use butyl-based tape to seal around the places where your fasteners go.

Considerations for Cantilever Decks

Adhering to the above deflection rules ensures basic deck safety. However, relying solely on these principles is insufficient. Installing cantilever decks requires comprehensive consideration of materials, construction, and maintenance.

Materials for Cantilever Decks

The cantilever length is largely determined by the beam material. Additionally, the material of the deck board affects its own deflection. For instance, high-quality composite decking boards offer superior bending resistance and load-bearing capacity. It effectively prevents edge sagging or cracking.

Design and Structural Support

The place where the cantilever support beam meets the main beam is where the most stress is concentrated. Usually, extra blocks or two support pieces are needed to make this area stronger. Hurricane tie rods, structural screws, and heavy-duty support beam hooks can also be used in places with a lot of wind or earthquakes. These parts work well to fight forces that push up and pull away from them.

Also, waterproofing is very important. At the point where the deck connects to the house, waterproofing must be done completely using things like waterproof tape and seals. This is very important for making sure that cantilever decks last a long time.

Common Safety Hazards

Cantilever deck designs must strictly adhere to construction requirements. Neglecting specifications and professional guidance poses serious safety risks, including:

• Structural Collapse: If the structure is overloaded or wasn’t built correctly, the cantilever part may bend too much or even break. Possible causes include mistakes in the calculations, using low-quality materials, or making bad links.
• Connection Point Failure: Loose fasteners, rotting wood, or rusted metal connections can weaken important joints. Because of this, it is best to choose long-lasting composite decking materials and special fixings.
• Long-Term Sagging and Fatigue: Even if the deck doesn’t collapse right away, prolonged overloading can cause it to sag permanently. This not only makes it less useful and less attractive, but it also makes the structure less stable.

Therefore, it is recommended to engage a professional engineer for design and installation. This is crucial for creating a cantilever deck that remains reliable over the long term.

Regular Maintenance

Regular upkeep and inspections are important for making sure that cantilever decks work well for a long time. Every once in a year, make sure that none of the metal fasteners are rusty or coming free. To make sure water can drain properly, keep the spaces between the deck boards clear.

Also, check the deck often for signs of rot, cracks, or insect damage, especially where the boards join to each other. Fix any old or broken caulking and waterproofing at home links right away.

Conclusion

Cantilever decks represent an innovative design in outdoor decking. They seamlessly blend architectural aesthetics with practical functionality. For homeowners, cantilever decks offer a more modern and open-air lifestyle.

Following basic building rules is the most important part of installing a cantilever deck. Only then will this floating comfort zone provide a safe place for your family to live. For more information on outdoor decks, contact us. COOWIN’s professional service team is ready to address all your inquiries.

FAQ

Is Cantilever Deck Construction More Expensive?

Cantilever structures typically require larger joists and more complex construction techniques. Their intricate design also increases upfront costs. Therefore, for the same area, cantilever decks generally cost slightly more than traditional decks. Their value lies primarily in aesthetics and space utilization. But if your deck is going to be built on rough ground, a cantilever plan may be better because you won’t have to pour expensive foundations and put up posts. In such cases, the overall cost may be lower than a traditional deck.

Do Composite Decking Boards Have Different Cantilever Rules?

Composite decking materials usually follow the same rules as wood when it comes to structural rules for joists. But you need to know what kind of composite decking you have to figure out how much the decking boards will bend. So, before installing, make sure you carefully read the product’s directions or call the company that made it.

How Can I Determine If a Cantilevered Deck is Safe?

Conduct these preliminary checks:

• Visual Inspection: Stand beneath the deck’s overhang. Look for noticeable sagging.
• Walk Test: Walk or bounce on the overhang. Check for excessive swaying.
• Connection Point Inspection: Check for weak or rusty bolts and ledger boards where the deck meets the house at the connection point.
• See If There is Rot: Gently tap the end of the support beam with a screwdriver or similar tool, especially in areas where it contacts metal fittings. Check for signs of soft rot.

To be sure, the best thing to do is to hire a skilled engineer to do a full safety check. They can find dangers in buildings that most people would have trouble finding.
