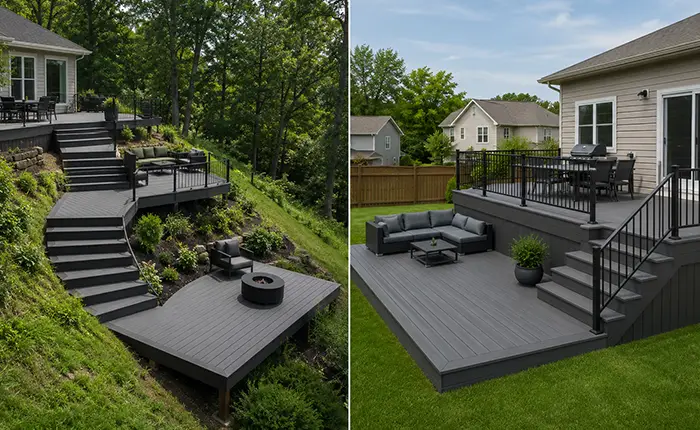

A multi-level deck transforms a flat backyard into a structured outdoor living space with distinct zones for dining, lounging, cooking, and entertaining. It is also the smartest way to work with sloped or uneven terrain.
This guide presents eight specific design concepts with suggested dimensions, function zones, and budget ranges. It also covers the structural, safety, and planning considerations that make multi-level builds different from standard single-level decks.
Table of Contents
Before choosing a design, answer these four questions. They determine which layout works for your property and budget.
Assign each level a purpose before drawing anything. Common zones include:
Two levels handle most residential needs. Three levels suit large properties or steep slopes. Four or more levels are rare and typically require engineered plans.
Multi-level decks cost 40–80% more than single-level decks of the same total square footage. The extra cost comes from additional structural framing, stairs, railings, and more complex foundations.
Estimated costs by scope (U.S. national averages, 2025, composite decking, professional installation):
| Project Scope | Total Area | Estimated Cost |
|---|---|---|
| 2-level, modest | 250–350 sq ft | $12,000–$20,000 |
| 2-level, full-featured | 350–500 sq ft | $20,000–$32,000 |
| 3-level, large | 500–700 sq ft | $30,000–$50,000 |
| 3-level, premium with outdoor kitchen | 700+ sq ft | $45,000–$75,000+ |
These estimates include materials, labor, railings, stairs, and basic lighting. Permits, site preparation, and special features (pergolas, built-in seating, hot tub pads) add to the total.
Best for: Flat to gently sloped yards, families who host gatherings
Layout: Two levels connected by three wide steps. The upper level (14×16 ft) connects to the house and serves as the dining and grilling zone. The lower level (12×14 ft) is a sunken conversation area with built-in bench seating along two sides.
Why it works: The step-down creates natural separation between cooking activity and relaxation. Guests can move freely between levels. The built-in benches eliminate the need for bulky outdoor furniture on the lower level.
Budget range: $15,000–$25,000
Best for: Steeply sloped backyards
Layout: Three narrow tiers (each 10×12 ft) stepping down a hillside. The top tier at the house level serves as the entry and dining area. The middle tier is a lounging zone with shade sails. The bottom tier transitions to the garden or lawn with wide, shallow steps.
Why it works: Each tier follows the natural grade. This minimizes tall support posts and deep concrete footings. The cascading layout turns a difficult slope into a usable series of outdoor rooms.
Budget range: $25,000–$40,000
Best for: Corner lots or homes with two exterior walls suitable for deck attachment
Layout: An L-shaped upper deck (16×20 ft total) wraps around two sides of the house. A lower platform (10×12 ft) steps down from one end, creating a private retreat tucked away from the main entertaining space.
Why it works: The wrap-around layout provides access from multiple rooms. The step-down lounge feels like a separate destination. It is ideal for reading, morning coffee, or quiet conversation away from the main deck activity.
Budget range: $18,000–$30,000
Best for: Homes with in-ground pools
Layout: An upper deck (14×18 ft) at house level for dining. Wide stairs (6 ft across) descend to a lower pool-level deck (12×20 ft) that wraps one side of the pool. The lower level uses grooved composite boards for wet-area slip resistance.
Why it works: The two-level design separates dry entertaining space from the wet pool zone. Grooved boards on the lower level provide traction for barefoot traffic. The wide stairs serve as casual seating during pool parties.
Budget range: $22,000–$38,000
For pool deck applications, choose textured composite boards with high slip resistance. COOWIN capped composite decking features deep wood-grain embossing that maintains grip in wet conditions. Request free samples to compare textures.
Best for: Small yards under 400 sq ft, townhouses, urban properties
Layout: Two levels totaling just 200 sq ft. The upper level (8×12 ft) is a bistro dining area for two to four people. Two steps down to the lower level (8×14 ft), which serves as a container garden and lounge space with a single loveseat.
Why it works: The level change makes a tiny yard feel larger by creating distinct zones. Built-in planters along the edges add greenery without consuming floor space. The two-step height difference provides just enough separation to define each area.
Budget range: $8,000–$14,000
Best for: Homeowners who cook and entertain outdoors frequently
Layout: The upper level (16×20 ft) holds the outdoor kitchen along one edge — grill, countertop, sink, and storage. The lower level (14×16 ft), two steps down, is a dedicated dining area with space for a table seating eight.
Why it works: Separating the kitchen from the dining area mimics the flow of an indoor home. The cook has a dedicated workspace. Guests sit away from the heat and smoke. The step-down provides a subtle visual boundary without walls.
Budget range: $30,000–$55,000 (including outdoor kitchen elements)
Best for: Privacy-focused layouts, spa-style backyards
Layout: The upper level (12×16 ft) is a standard entertaining deck at the house level. Three steps descend to a reinforced lower platform (10×10 ft) designed to support a hot tub (typically 3,000–5,000 lbs when filled). Privacy screens or lattice panels surround the lower level.
Why it works: Placing the hot tub on the lower level keeps it visually separated from the main deck. The lower position also reduces the structural challenge — less height means shorter posts and less lateral stress. Privacy screening creates an intimate spa feel.
Structural note: Hot tub platforms require reinforced framing. Use 2×8 or 2×10 joists at 12-inch on-center spacing. Concrete footings must be sized for the combined weight of the tub, water, and occupants (up to 5,000+ lbs). Consult a structural engineer.
Budget range: $20,000–$35,000 (not including the hot tub itself)
Best for: Modern/contemporary homes, design-forward homeowners
Layout: Two levels with contrasting materials. The upper level (14×16 ft) uses dark charcoal composite boards. The lower level (12×14 ft) uses light gray or natural wood-tone composite boards. Aluminum railings with cable infill connect the two levels.
Why it works: The color contrast visually defines each zone without physical barriers. Dark boards ground the dining area. Light boards open up the lounge space. The aluminum-and-cable railings maintain sight lines and add a modern edge.
COOWIN composite decking is available in multiple colors and wood-grain textures, making mixed-material designs easy to execute with a single manufacturer. Pair with COOWIN composite railing for a fully coordinated look.
Budget range: $18,000–$28,000
Multi-level decks involve more structural complexity than single-level builds. These are the key requirements.
Most jurisdictions require a building permit for any deck over 200 sq ft or 30 inches above grade. Multi-level decks almost always require a permit. Some municipalities also require engineered drawings (stamped plans) for complex multi-level structures.
Key IRC code requirements for multi-level decks:
Consider a structural engineer if your deck:
Engineering fees typically run $500–$1,500 for residential deck plans.
Each level needs its own properly sized footings. Deeper levels on slopes may require taller posts and larger concrete piers. In cold climates, all footings must extend below the frost line (24–60+ inches depending on region).
A multi-level deck is a good fit if you:
A single-level deck may be better if you:
A multi-level deck turns an underused outdoor space into a series of connected rooms. The key to success is clear zone planning, proper structural engineering, and choosing materials that will look great for decades with minimal upkeep.
Start by matching a design concept to your terrain and lifestyle needs. Then consult a local contractor or engineer to refine the plan for your specific property. The investment pays off in daily enjoyment and long-term home value.
Need help choosing the right materials for your multi-level project? Contact COOWIN’s team for expert guidance, or request free samples to compare colors and textures before you commit.
A two-level composite deck of 300–400 sq ft typically costs $15,000–$28,000 with professional installation. The exact price depends on materials, site complexity, and local labor rates. Adding features like built-in seating, lighting, or a pergola increases the total.
In most jurisdictions, yes. Any deck over 200 sq ft or 30 inches above grade typically requires a building permit. Multi-level decks with complex framing may also require engineered drawings. Contact your local building department before starting.
A simple two-level deck with a modest height change (one to three steps) is within reach for experienced DIY builders. Complex multi-level designs with tall posts, heavy loads, or steep slopes should be professionally built. At a minimum, have a structural engineer review your plans.
Capped composite decking offers the best balance of durability, appearance, and low maintenance for multi-level builds. The additional surface area of a multi-level deck makes low-maintenance materials even more valuable. Wood requires staining at every level every 2–3 years, multiplying the maintenance burden. COOWIN composite decking provides a durable, low-maintenance surface in a range of colors suited to multi-level designs.
The two levels can share a common beam where they meet, or they can be built as independent structures with separate footings. Shared-beam construction is more efficient but requires careful load calculation. Independent structures are simpler to engineer and allow each level to settle independently.
Two to four steps (14–30 inches of height change) is the most comfortable and practical range. A single step creates a trip hazard. More than six steps start to feel like a staircase rather than a level transition. Three steps with a 7-inch rise each (21-inch total height change) is the most popular configuration.
