Deck Railing Components and Height Requirements

In modern homes, decks are a must-have for outdoor living spaces. The railing system is quite important in this area. It is the first line of defense against falls, which keeps people safe. The posts, top and bottom rails, infill panels, and cap rails are the most significant sections of deck handrails. The whole railing system is held up by these parts.

Most residential deck railings stand 36 inches tall. Stair rails usually measure 34 to 38 inches high. Handrail posts must prevent a 4-inch sphere from passing through. Following these code requirements guarantees safety. This guide covers essential parts, height standards, and safety rules for deck railings.

What Are the Parts of a Deck Railing System?

A deck railing system is more than just a conventional fence; it’s a load-bearing and protective structure made up of numerous sections. Here are the names, functions, and materials that are often used for each part.

Support Posts: Materials and Spacing

Posts serve as the foundation of the railing system. You install them vertically, attaching the bottom ends securely to the deck’s main frame. The top rail rests on the upper ends, distributing pressure across the deck.

Space posts no more than 6 to 8 feet apart to prevent the railing from flexing. The installation requires perfectly straight, strong connections. A standard post measures 4 by 4 inches. Their length must ensure that the height of the finished railing complies with all rules. The part that is above ground must be at least 36 inches long, without counting any part that is hidden or placed into a frame.

Wooden posts look natural and cost less, but they require regular maintenance to prevent rot. Metal posts, like galvanized steel or aluminum, offer durability and easy upkeep. But you need special connectors to attach them to the deck. Composite materials resist harsh weather and maintain their appearance over time.

Top and Bottom Rails: Height Guidelines

The top rail is the uppermost section of the railing that is horizontal. It illustrates how high the railing can go. It is the most visible element and gives people a place to lean and hold on to.

The bottom rail holds the lower infill section. It must sit no more than 4 inches above the deck surface. This design makes it easy to get rid of leaves and snow that have built up, yet it is still safe to use.

Railing Infill: Balusters and Panels

Infill sits between the top and bottom rails to close gaps. This creates the actual safety barrier. Common infill types include:

• Railing Posts: Posts are the most common and conventional type of infill. They are usually made up of thin bars that are placed vertically.
• Cable Infill: Cable infill is made up of high-strength stainless steel cables that are stretched horizontally. They have a very modern look and almost no obstructions in the way of views.
• Glass Panels: A lot of railing systems use tempered or laminated safety glass as infill. It looks modern, is easy to care for, and gives you a complete vision while keeping you safe.
• Grates and Screens: They are two types of infill that are different from each other. They block some light and keep people from seeing in, but they still let air flow.

Post Cap

Capitals are decorative caps that go on top of posts. Their main duty is to look attractive, but they help keep moisture out and slow down decay by sealing the end grain of the post. They also make edges softer to make things safer.

Many different types of materials can be used to make capitals, such as wood, composite decking, metal, and ceramic. Styles range from simple flat tops to decorative lamp shapes.

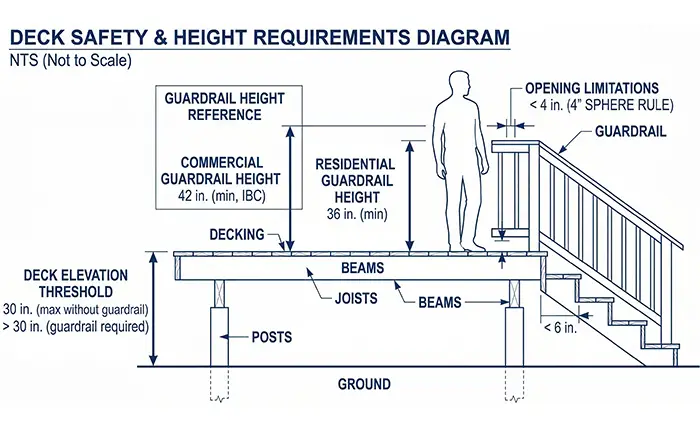

Requirements for the Height of Deck Railings

The height of the railing is the most important sign of safety. Rules are there to stop individuals of all ages and sizes from climbing or falling by mistake.

General Height Rules: IRC Standards

The International Residential Code (IRC) requires railings when a deck sits more than 30 inches above the ground. The top rail of the guardrail must be at least 36 inches above the deck floor. This is the most typical minimal standard for guardrails on residential decks.

Decks for businesses or more than one family must follow tougher rules. The minimum height for guardrails is usually 42 inches. This is because these places get a lot of foot traffic, which means they need a bigger safety margin.

Local Rules: Building Codes

Different building codes mandate specific railing heights based on your location. Areas with frequent earthquakes may require 42-inch residential railings. Always consult your local building department before starting your project. Make sure you know and follow the most recent construction codes in your area. If you don’t do this, the project could cease, you could be fined, or you could have to tear it down and build it again.

Stair Guardrails: Holding Guidelines

Stairs require secure guardrails and handrails. Residential stair handrails must measure between 34 and 38 inches high. You measure this along the stair slope, directly up from the tread edge. This height keeps your arms comfortable while climbing. The usual height for business stair handrails is 42 inches, which is also the height for landing railings.

Additional Railing Safety Rules

In addition to height, the following safety precautions are particularly crucial for the safety of the railing system. They have to be there when the building is being reviewed.

Material Strength: Load Capacity

Deck railings should also be strong enough to handle knocks or pressure that might happen by accident. The code says that the top rail must be able to support a focused load of at least 125 pounds originating from any direction and from any area. The whole system must be able to handle a load of 50 pounds per square foot that is evenly spread out.

So, owners need to use strong enough materials to make sure the railing stays up. Wood is a common and cheap choice, but it needs to be stained and treated periodically to keep water out and stop it from rotting. Composite railings, which are comprised of wood fibers mixed with plastic, don’t need much care. They don’t rust, be damaged by bugs, or need to be painted. If you have the money, metal and glass railings are also good choices.

Four-Inch Sphere Rule: Gap Limits

Safe guardrails must pass the four-inch sphere test. The rule specifies that no solid sphere with a diameter of four inches can go through any section of the guardrail. This includes the space between the balusters, the bottom rail and the deck, and the decorative apertures.

This guideline is there to safeguard kids from getting caught or falling through holes in their heads or bodies. This means that the balusters that are standing up can’t be more than 4 inches apart. For cable systems, the spacing needs are usually reduced because the cables could lengthen.

Installation: DIY vs Professional

Experienced homeowners can install deck railings themselves. Companies like Trex and COOWIN offer modular kits and step-by-step installation manuals. Only use fastening methods that have been allowed by code. Check that all measurements, such as height and spacing, are completely in line with the rules.

If you need to build a complicated multi-level deck or a commercial building, you should hire a contractor with experience. They understand local codes and ensure smooth final inspections.

In Conclusion

Deck railings protect your family while enhancing your outdoor space. They need to find a balance between looks, conformity, and usefulness. A well-built deck railing system will keep your deck secure and valuable for years to come. Contact COOWIN to learn more about outdoor decks. We offer premium composite railing solutions.

FAQ

When is it okay to build a deck without railings?

The IRC allows decks without railings if the floor sits less than 30 inches above the ground. But we suggest you should consider these two things:

• First, the IRC might not be as strict as the restrictions in your area.
• Second, we recommend installing railings to protect children, elderly guests, and frequent visitors from falls.

Can I install horizontal railing posts?

People usually don’t suggest horizontal railing posts. They can get kids to climb, which makes it far more probable that they will try to scale the railing. In a lot of situations, residential railings can’t have horizontal pieces that individuals can climb. Cable railings offer a safer way to achieve a modern horizontal look, as taut cables resist climbing.

How do I check railing safety?

Regular inspections keep your deck safe. Fix broken parts immediately. Consult a professional if you spot major issues.

• Stability Test: Push the top rail and posts firmly. Check for wobbling or loose connections.
• Inspect Connections: Look closely at post-to-deck and rail-to-post joints. Find loose screws or rusted bolts.
• Measure Clearances: Use a caliper to confirm all gaps remain under 4 inches.
• Check Materials: Look for warped wood, bug damage, or severe metal corrosion.
• Inspect Handrails: Ensure stair rails feel smooth, secure, and splinter-free.
